- Heavy-Duty, All Welded Aluminum
- Adjustable Bullet Feet
- Standard for Easy Leveling
- 1500 lb. Capacity Per Shelf
- Maximum Capacity for Evenly Distributed, Static Load
- Designed for Institutional and Correctional Use

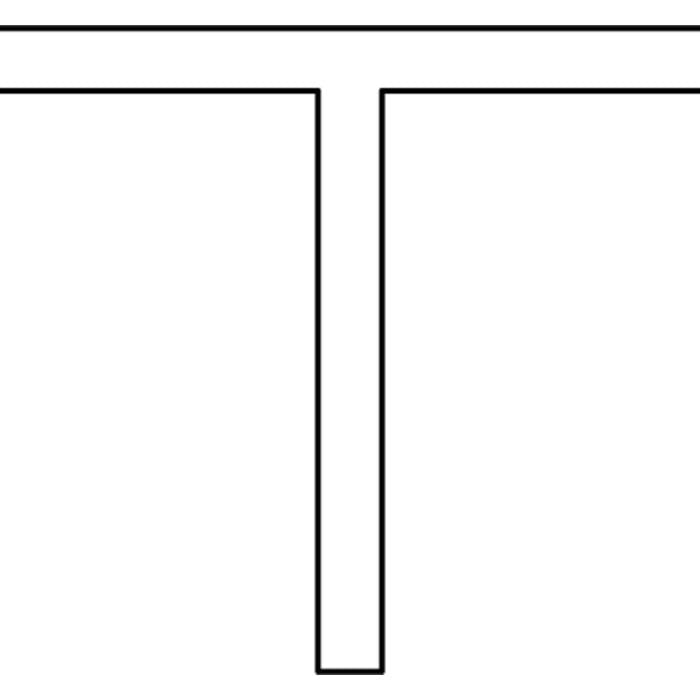

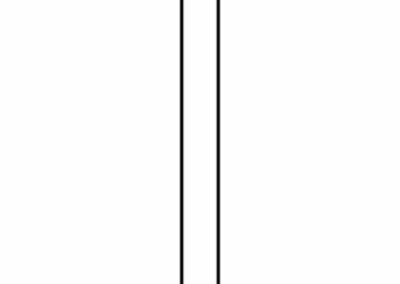

- T-Bar Design
- Optional – Factory Installed*
- 8″ x 2″ Low Noise Gray plate Casters
- 600 lb. Capacity Per Caster
- Rigid, Swivel, Locking Swivel
*Note: Casters are factory installed and may not be added at a later date.
More Information
Download »

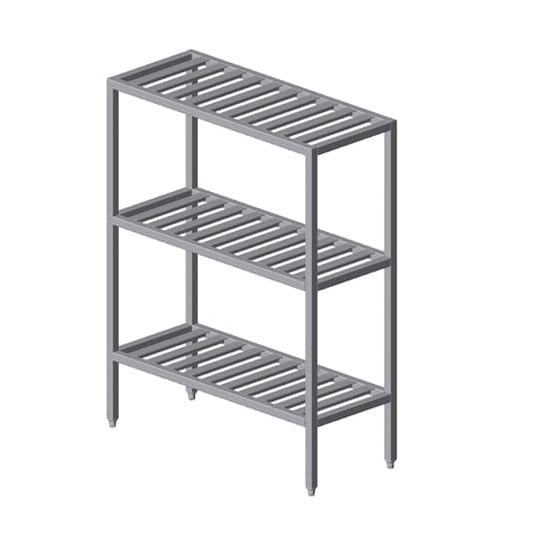

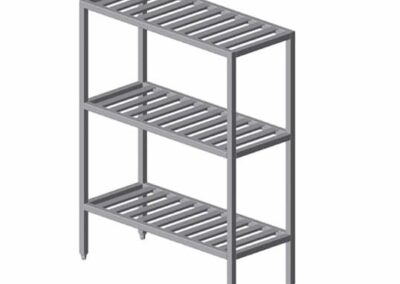

Institutional All Welded T-Bar Shelving Specs
| Model Number | Shelf Qty. | Shelf Clearance | Size W x H x L |
|---|---|---|---|
| SWT204836-2 | 2 | 34 1/2" | 20" x 48" x 36" |
| SWT204842-2 | 2 | 34 1/2" | 20" x 48" x 42" |
| SWT204848-2 | 2 | 34 1/2" | 20" x 48" x 48" |
| SWT204860-2 | 2 | 34 1/2" | 20" x 48" x 60" |
| SWT204872-2 | 2 | 34 1/2" | 20" x 48" x 72" |
| SWT244836-2 | 2 | 34 1/2" | 24" x 48" x 36" |
| SWT244842-2 | 2 | 34 1/2" | 24" x 48" x 42" |
| SWT244848-2 | 2 | 34 1/2" | 24" x 48" x 48" |
| SWT244860-2 | 2 | 34 1/2" | 24" x 48" x 60" |
| SWT244872-2 | 2 | 34 1/2" | 24" x 48" x 72" |
| SWT206036-3 | 3 | 22 1/2" | 20" x 60" x 36" |
| SWT206042-3 | 3 | 22 1/2" | 20" x 60" x 42" |
| SWT206048-3 | 3 | 22 1/2" | 20" x 60" x 48" |
| SWT206060-3 | 3 | 22 1/2" | 20" x 60" x 60" |
| SWT206072-3 | 3 | 22 1/2" | 20" x 60" x 72" |
| SWT246036-3 | 3 | 22 1/2" | 24" x 60" x 36" |
| SWT246042-3 | 3 | 22 1/2" | 24" x 60" x 42" |
| SWT246048-3 | 3 | 22 1/2" | 24" x 60" x 48" |
| SWT246060-3 | 3 | 22 1/2" | 24" x 60" x 60" |
| SWT246072-3 | 3 | 22 1/2" | 24" x 60" x 72" |
| SWT207236-4 | 4 | 18 1/2" | 20" x 72" x 36" |
| SWT207242-4 | 4 | 18 1/2" | 20" x 72" x 42" |
| SWT207248-4 | 4 | 18 1/2" | 20" x 72" x 48" |
| SWT207260-4 | 4 | 18 1/2" | 20" x 72" x 60" |
| SWT207272-4 | 4 | 18 1/2" | 20" x 72" x 72" |
| SWT247236-4 | 4 | 18 1/2" | 24" x 72" x 36" |
| SWT247242-4 | 4 | 18 1/2" | 24" x 72" x 42" |
| SWT247248-4 | 4 | 18 1/2" | 24" x 72" x 48" |
| SWT247260-4 | 4 | 18 1/2" | 24" x 72" x 60" |
| SWT247272-4 | 4 | 18 1/2" | 24" x 72" x 72" |
