- Limited Lifetime Warranty
- Designed for doorways that swing out or in

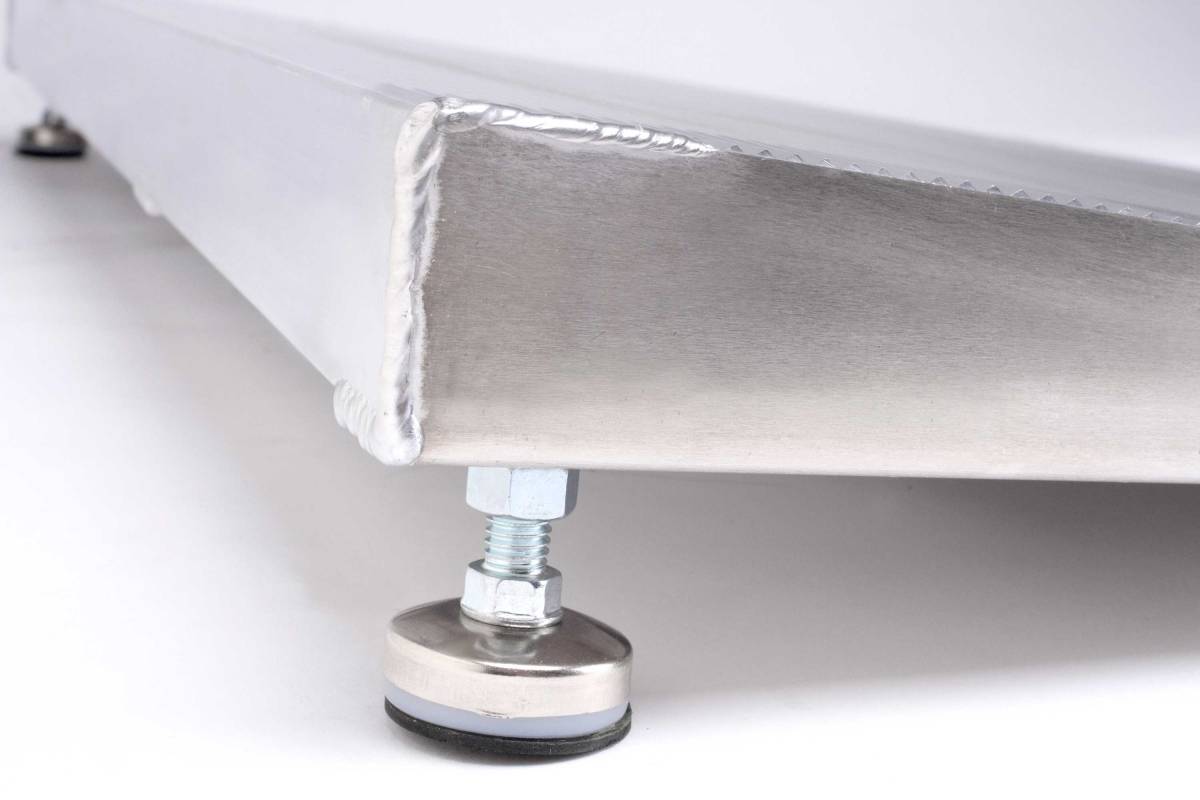

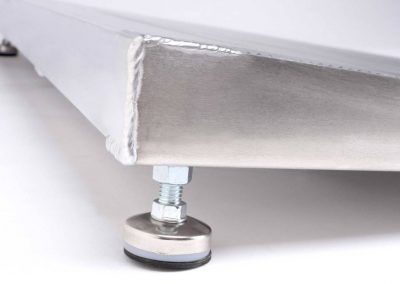

- Adjustable to fit range of threshold rises
- Durable welded construction
- Slip resistant grooved aluminum
- Accommodates wheelchairs and scooters with various wheel configurations
- Aligns directly against the door
- Easy to Install!!
More Information
Download »
Instructions
Download »
We love the Elev8 ramps because they allow us to fit a customer’s doorway without having to bring dozens of ramps. The build quality is great and they look pretty good as well.

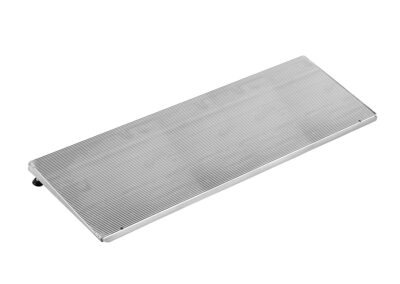

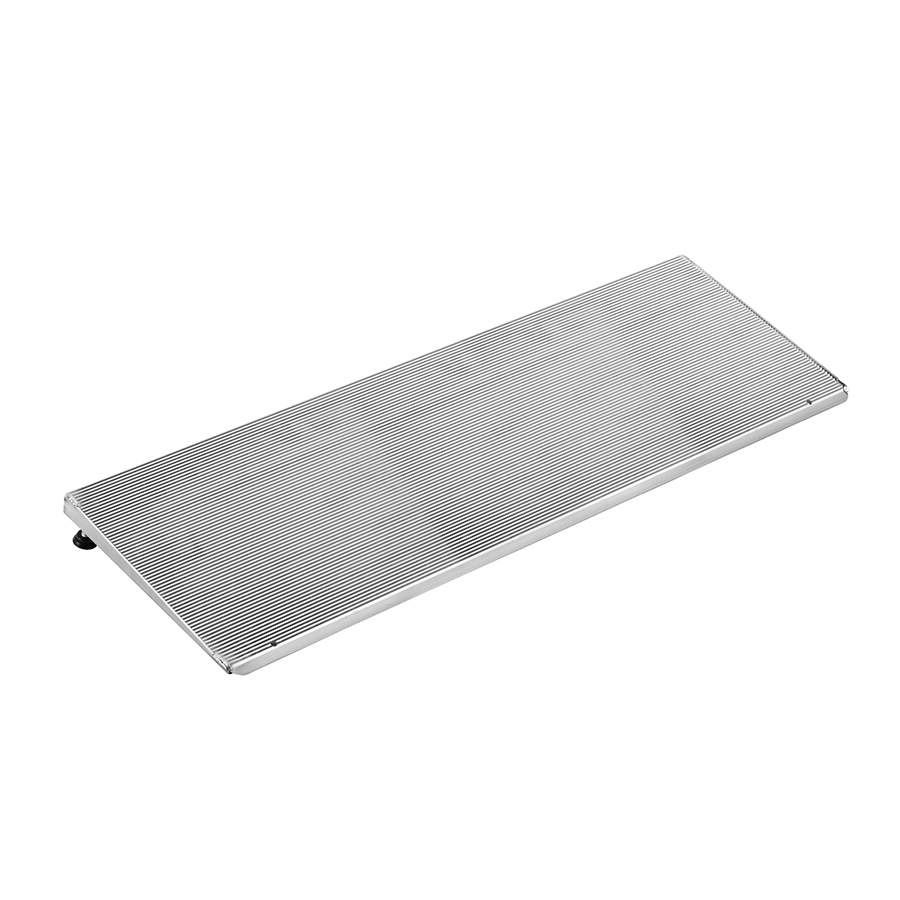

Specifications
| Item Number | Length | Width | Threshold Height | Weight | Capacity* |
|---|---|---|---|---|---|
| ATH1232 | 12" | 32" | 1 5/8"-2 3/8" Rise | 6 lbs. | 800 lbs. |
| ATH1236 | 12" | 36" | 1 5/8"-2 3/8" Rise | 8 lbs. | 800 lbs. |
| ATH2432 | 24" | 32" | 2 3/8"-3½" Rise | 12 lbs. | 800 lbs. |
| ATH2436 | 24" | 36" | 2 3/8"-3½" Rise | 14 lbs. | 800 lbs. |
| ATH3632 | 36" | 32" | 3"-6" Rise | 19 lbs. | 800 lbs. |
| ATH3636 | 36" | 36" | 3"-6" Rise | 21 lbs. | 800 lbs. |
| ATH4832 | 48" | 32" | 4"-6" Rise | 26 lbs. | 800 lbs. |
| ATH4836 | 48" | 36" | 4"-6" Rise | 28 lbs. | 800 lbs. |
* Maximum Ramp Capacity: 400 lbs. Single axle – 800 lbs. Two axles.
